Morel Mushroom Cultivation Container
1. Product Overview
Morel cultivation is highly sensitive to temperature swings, humidity and light, which has long limited commercial yields. This model centres on a programmable cold-shock curve, condensation-free high-humidity air supply and a low-light recipe, turning primordia induction and fruiting into a repeatable, standardised process rather than a weather-dependent gamble.
2. Key Advantages
•Programmable day/night temperature curves that reproduce the cold-shock window required for primordia induction
•Anti-condensation interior surfaces that prevent water damage to fruiting bodies and suppress contaminants
•Multiple independent climate zones per container for staggered spawning and harvest windows
•Full local parameter logging with remote access, so every batch is traceable and repeatable
3. Technical Specifications
项目 / Item 参数 / Specification
型号 / Model HVC-M1C

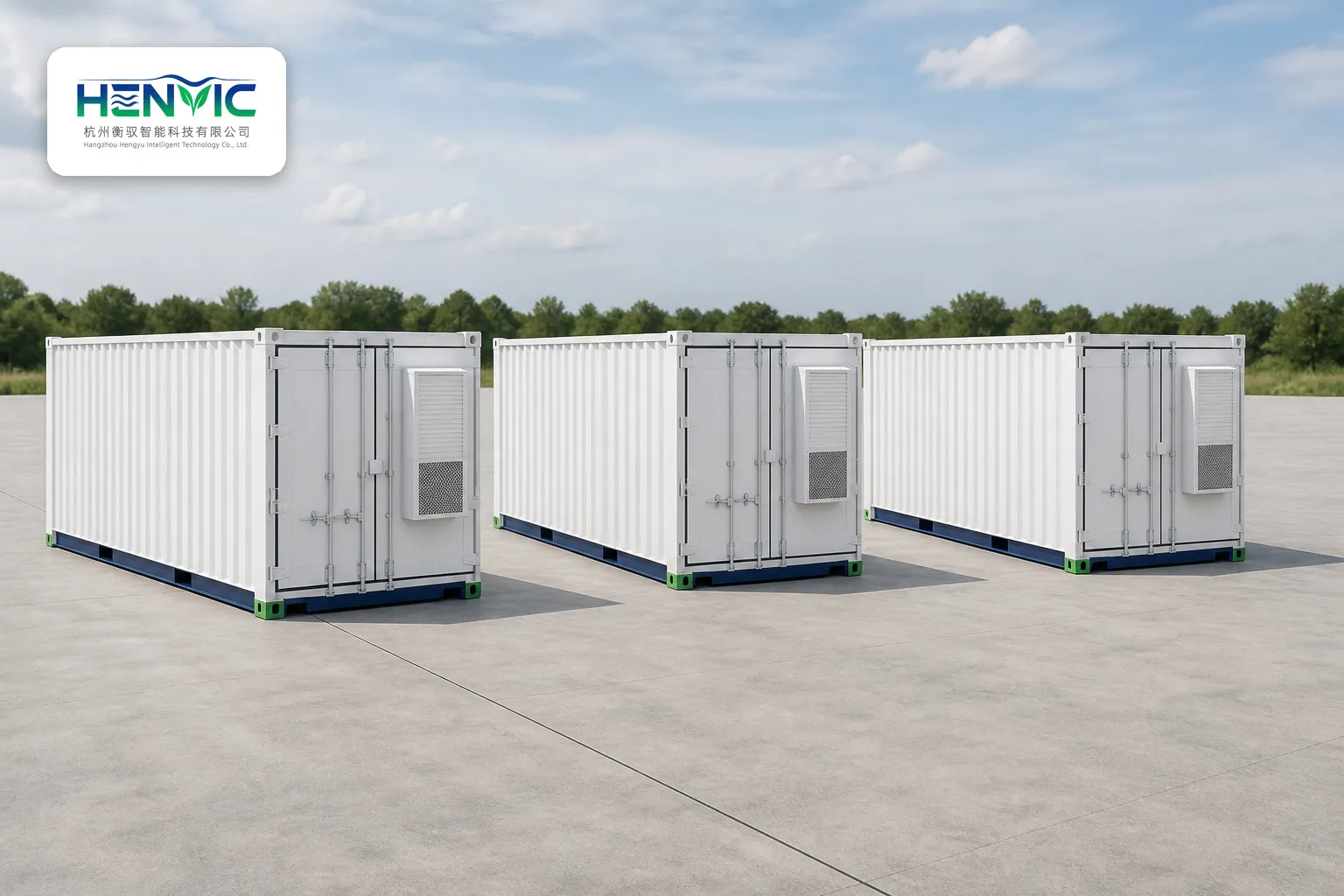

外形尺寸 / Dimensions 12000 × 2438 × 2896 mm（40 尺标准箱） / 12000 x 2438 x 2896 mm (40 ft ISO container)
有效栽培面积 / Effective cultivation area 60–80 m² / 60-80 m2

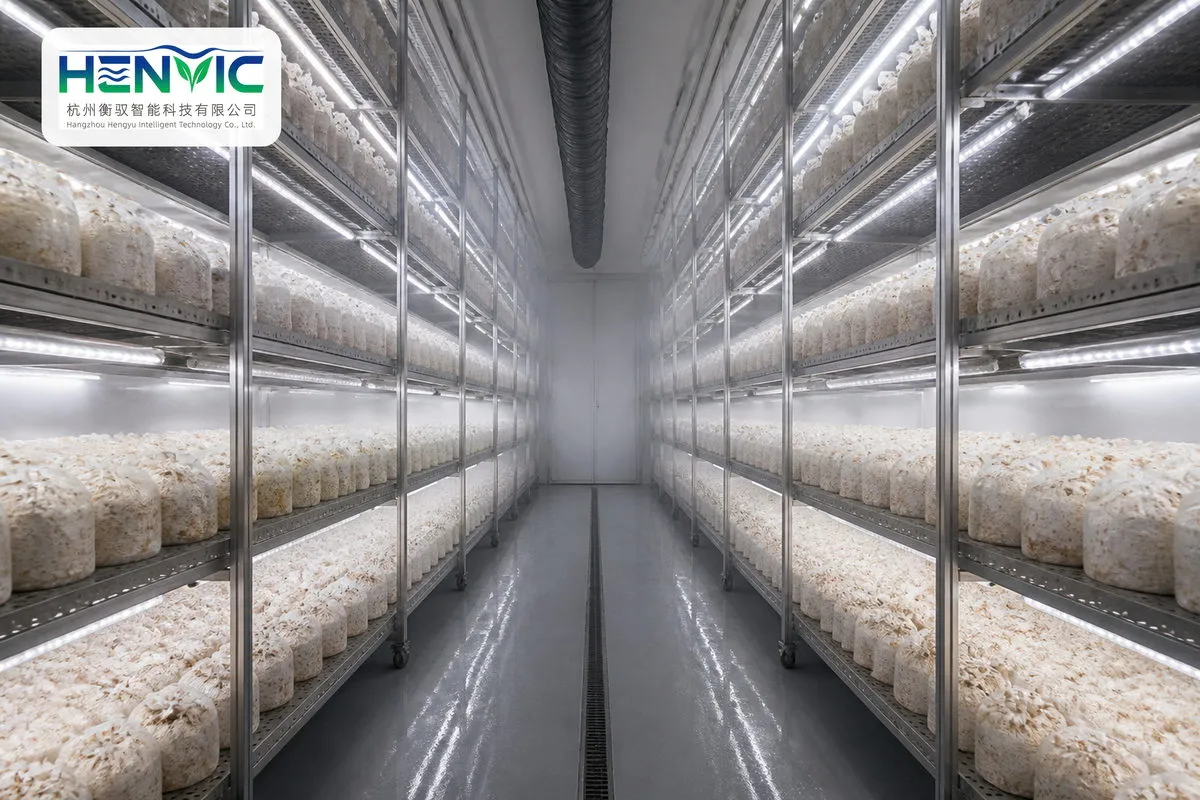

层架配置 / Rack configuration 5–6 层高密度出菇架，配分区送风 / 5-6 tier high-density racks with zoned air distribution
温度控制范围 / Temperature range 8-18 ℃ (±0.5 ℃) / 8-18 degC (+/-0.5 degC)
相对湿度 / Relative humidity 85-95% RH
CO₂ 浓度 / CO₂ concentration 600-1200 ppm
光照 / Lighting 0-300 lux（可调 / adjustable）
栽培周期 / Cultivation cycle 60–90 天（含菌丝培养与出菇） / 60-90 days including colonisation and fruiting
装机功率 / Installed power 15–20 kW / 15-20 kW
电源 / Power supply 380 V / 50 Hz 三相（可按目的国电压定制） / 380 V / 50 Hz, 3-phase (customisable to destination-country voltage)
箱体传热系数 / Enclosure U-value ≤0.35 W/(m²·K) / <= 0.35 W/(m2.K)
控制系统 / Control system PLC + 触摸屏 + 远程监控 + 多气候分区独立控制 / PLC, touch panel, remote monitoring and independent multi-zone climate control
主栽品种 / Primary species 羊肚菌（Morchella spp.） / Morel Mushroom (Morchella spp.)
四、系统配置 / 4. System Configuration
Standard configuration: Insulated enclosure, inverter heat-pump cooling and heating unit, ultrasonic fogging humidifier, casing-bed or substrate-bag racks, fresh-air and CO2 control, dimmable fruiting light bars, fertigation and drainage lines, and a PLC touch-panel control cabinet.
Enclosure and integration: 12000 x 2438 x 2896 mm (40 ft ISO container); racks: 5-6 tier high-density racks with zoned air distribution; control: PLC, touch panel, remote monitoring and independent multi-zone climate control.
5. Suitable Species
Primary species: Morel Mushroom (Morchella spp.). Cultivation method: supplemented substrate bags with a soil casing layer. We recommend adding an external nutrient-bag workstation and a casing area for concentrated pre- and post-fruiting operations.
6. Application Scenarios
Industrial production of premium mushrooms, cooperative demonstration bases, university and research cultivation trials, and direct supply to high-end restaurants. This is the High-Yield configuration; Highest output per unit area; built for steady, large-volume production.
7. Delivery & Installation
•Factory: the enclosure, refrigeration unit, piping and electrical systems are assembled and bench-tested in our factory, followed by a 72-hour continuous operation test, with a test record supplied with the shipment.
•Transport: the enclosure matches standard ISO container dimensions and can be shipped as ordinary container cargo under FOB, CIF or DAP terms.
•On site: our engineers or authorised partners provide positioning guidance, utility connection, commissioning and operator training, normally within 5 working days.
•Deliverables: the complete unit, printed and electronic bilingual operation manuals, a PLC programme backup, crop parameter recipes, and the factory test report.
8. After-Sales Service
•Warranty: 12 months on the complete unit from acceptance, with optional extended coverage for the core refrigeration unit and control system.
•Response: repairs acknowledged within 24 hours on business days, with a solution proposed within 72 hours for critical faults.
•Remote operations: remote diagnostics, recipe and parameter upgrades, data dashboards and energy analysis (standard on the Smart Flagship configuration, optional on the others).
•Spare parts and upgrades: long-term supply of genuine parts, filters and consumables, plus control-system and technology upgrades.
•Training and cultivation support: operator, maintenance and cultivation-process training, with continuously updated crop parameter packs.
