HVC-M08 Shiitake Mushroom (King Oyster Mushroom) | Henvic

HVC-M08 Shiitake Mushroom (King Oyster Mushroom) Cultivation Container

Name: HVC-M08 Shiitake Mushroom (King Oyster Mushroom) Cultivation Container
Brand: Henvic
SKU: 1789696134793
Availability: InStock

Product illustration: images/mushroom/HVC-M08.jpg (Fresh Air and Cooling Module)

I. Product Overview

Oyster mushrooms are cultivated using soil-covered cultivation methods, which impose unique requirements for ventilation and humidity control; furthermore, during the fruiting period, they release large amounts of CO₂ and heat. The HVC-M08 model is equipped with a high-efficiency heat exchange fresh air module and a directional air distribution duct system, ensuring uniform airflow across the cultivation bed and preventing temperature and humidity stratification.

II. Core Competencies

● High-efficiency heat exchange for fresh air: The sensible heat exchanger recovers the cooling capacity from exhaust air, thereby reducing the fresh air load.

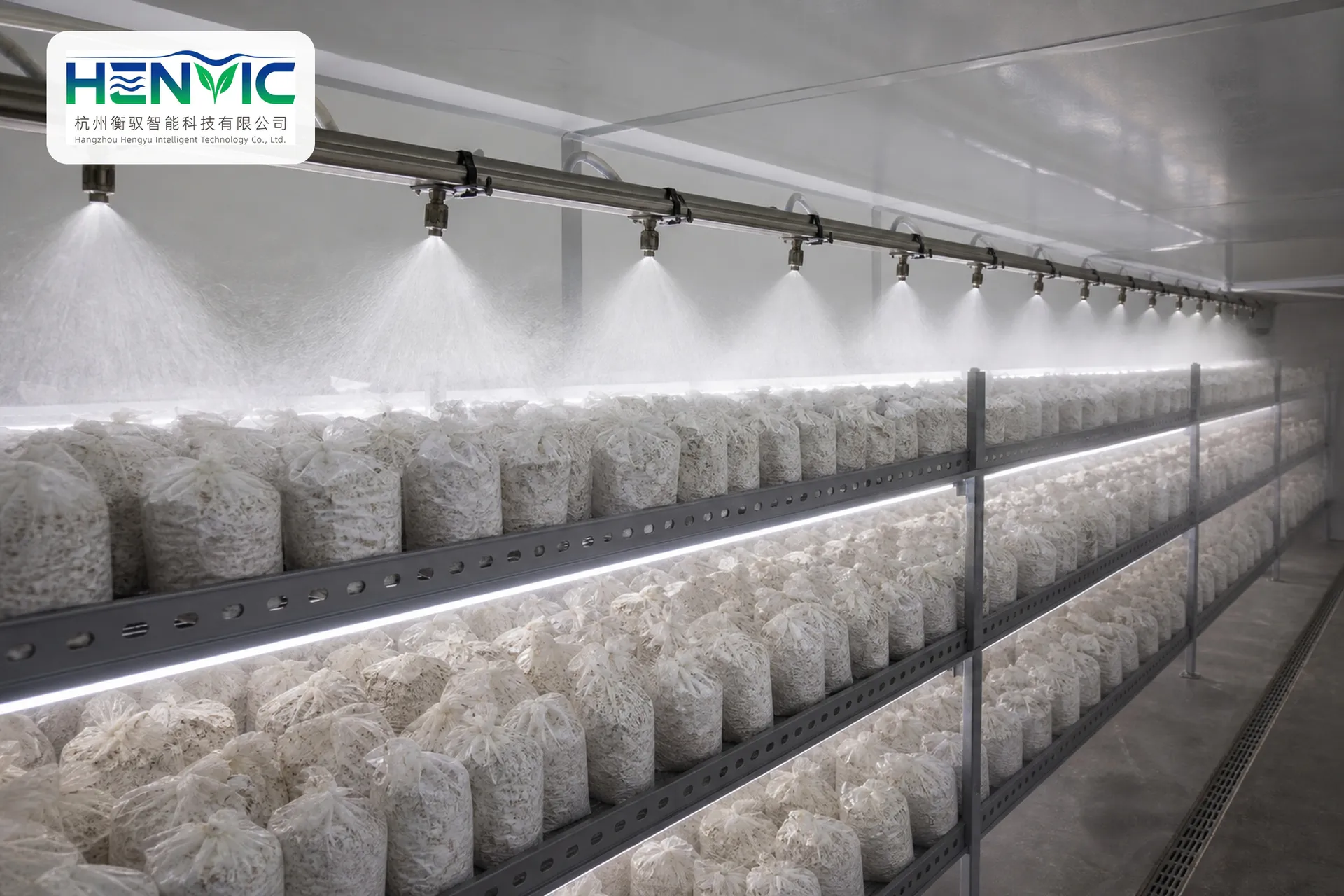

● Interlayer directional air supply: The air supply ducts uniformly cover the surface of the mushroom bed, minimizing edge and corner dead zones.

● Corrosion-resistant lining: For high-humidity soil-covered environments, use corrosion-resistant panels and stainless steel fasteners.

● Facilitates material handling and loading: The side door and detachable shelving design make soil application and material removal operations convenient.

III. Typical Technical Specifications

project	parameter
outline dimension	12000 × 2438 × 2896 mm (40 feet)
Effective cultivation area	45–55 m² (three-tier mushroom beds)
Temperature control range	16–20 ℃（±0.8 ℃）
relative humidity	85%–92% RH
CO₂ concentration	800–1500 ppm
Fresh air heat exchange efficiency	≥60%
installed power	11–15 kW
source	380 V / 50 Hz Three-phase

IV. System Configuration

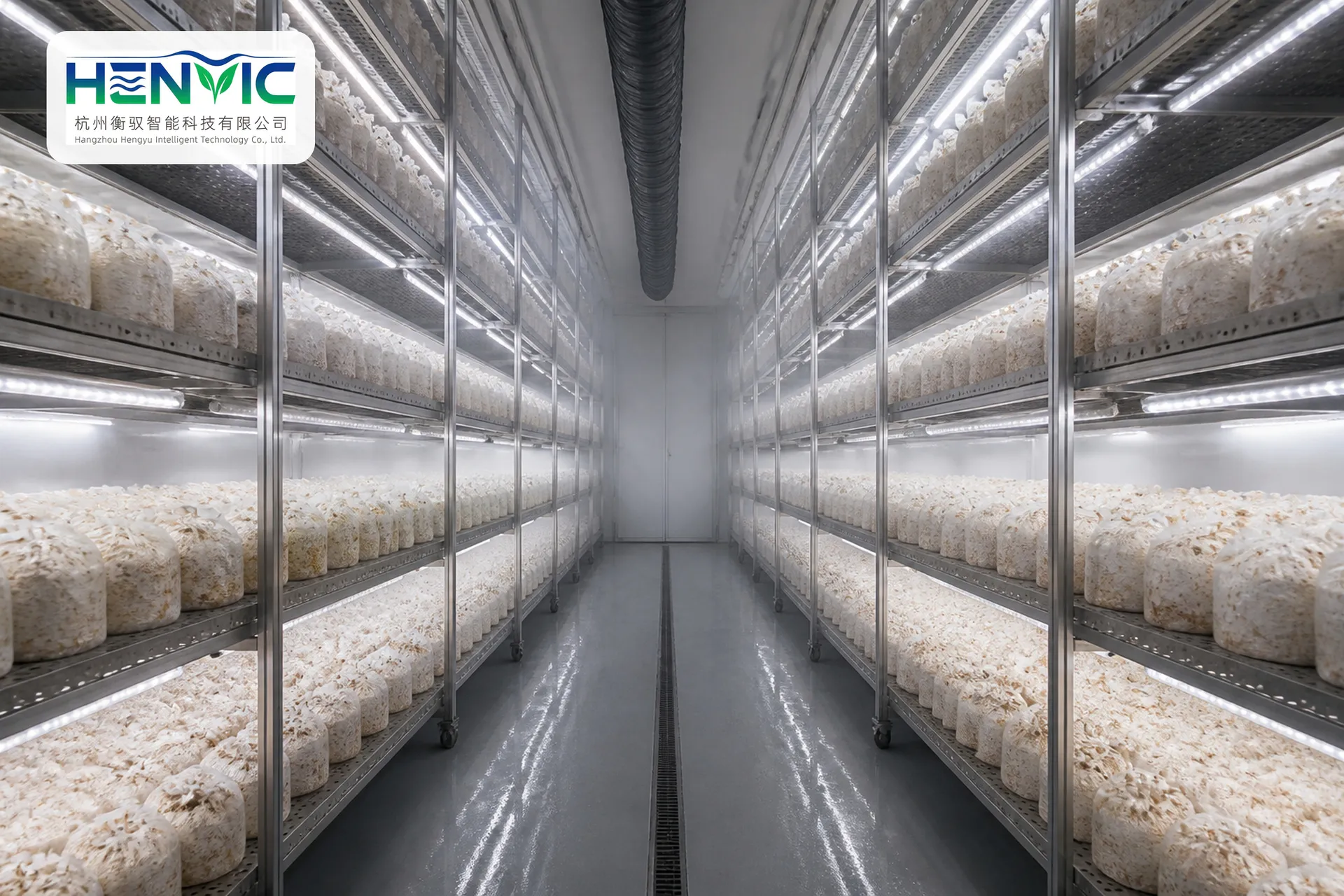

sensible heat exchange fresh air handling units, refrigeration units, inter-level air supply ducts, soil-covered mushroom bed shelving, anti-corrosion lining, humidification system, drainage and flushing system, intelligent control cabinet.

V. Applicable Varieties

Shiitake mushrooms (Pleurotus ostreatus), brown mushrooms, and other fungi cultivated under soil-covered cultivation systems.

VI.适用场景

Industrial-scale oyster mushroom cultivation base, edible fungi industrial park, and agricultural circular economy project.

VII. Delivery and Installation

Delivered as a complete unit; commissioning shall be completed within 4–5 working days after on-site hoisting and power connection; guidance on soil covering mix proportions and ventilation management will be provided.

VIII. After-Sales Service

12-month overall warranty; regular replacement service for heat exchange cores and filtration consumables; remote operational and maintenance support.
